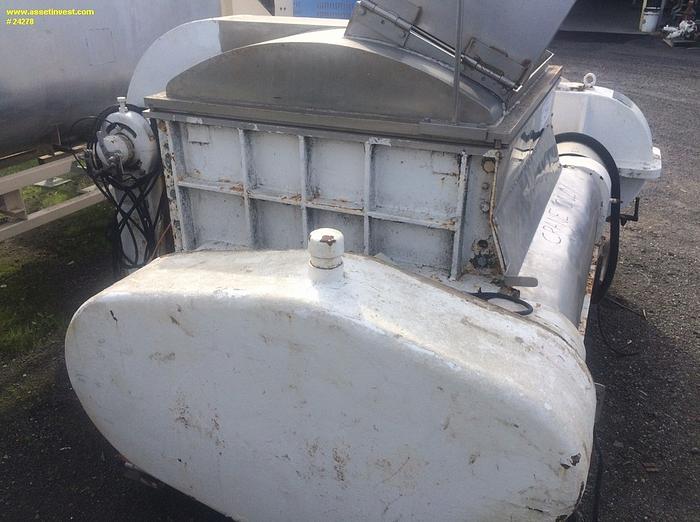

INOUE MNFG 41-10 Mixers General

INOUE MNFG 41-10 Mixers General
Contact us for price
Perth, Australia
orCall (+61) 403 574 225
Description
Double Arm Sigma Blade Planetary Mixer St Steel
Double Arm Sigma Blade Mixer - similar to Z arm
· 950mm x 900mm x 800mm deep
· S/N 361494 41-10
· +- 600 litres total capacity (top flange)
· Carbon Steel frame construction with hardened stainless steel liner welded into trough

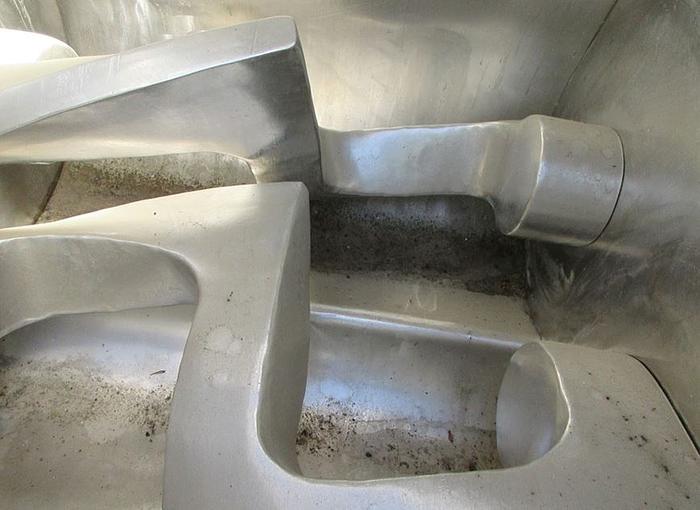

· Stainless steel cast double sigma blades
· 30 HP blades drive motor with primary and end case gear reducers
· Discharge via hydraulic tilt of trough
· Mixer cover opened/closed hydraulically

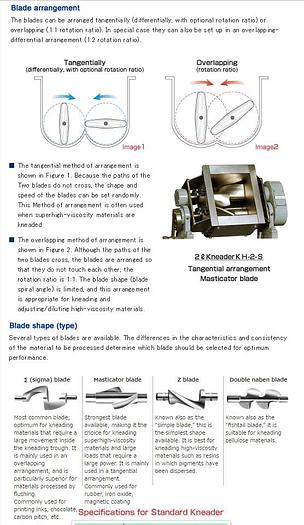

· Sigma Blades designed to push towards trough centre
· Packing glands with adjustable followers
· Outboard roller bearings support each mixing blade shaft
CALL ALAN ON +61 0418 617 753
EMAIL
Specifications
Manufacturer | INOUE MNFG |
Model | 41-10 |
Condition | Used |
Stock Number | 24278 |
Material | CS AND SS |
