FLEX PACK SERIES 100 Bottling and Bevereage
No longer available
FLEX PACK SERIES 100 Bottling and Bevereage
Perth, Australia
Description

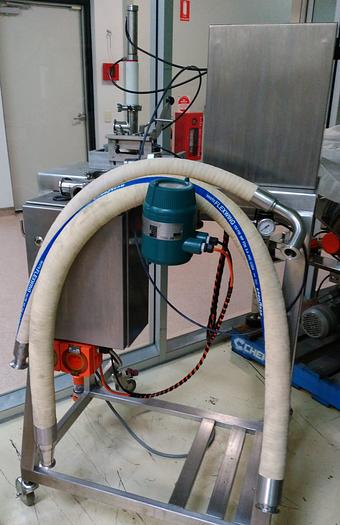

Bag in Box Filler 2 - 25 litre capacity
This unit is capable of filling most liquids into bags, pails and drums.
Capacity 2 - 25 litres
Filling speed up to 8 x 4 litre bags per minute under optimum conditions.
OPERATION DESCRIPTION
A manual single head filler. An operator (hand) loads a bag into the bag holder and initiates a fill cycle.
'The mechanism features a moving head which is manually operated to decap and recap the bag.
A sanitary stainless steel fill head seats onto the bag spout when filling.
Batch control is achieved with a high speed counter being fed signals from the sanitary flow-meter.
Adjustable timers, fill volume and other critical control steps within the programme are
accessed using a touch pad which is rated Nema4/IP65.
TYPICAL PRODUCT APPLICATIONS
wine, water, fruit juices, post mix syrup, oils, milk products, chemicals
fillers are designed & manufactured in Melbourne, Australia . they are built from stainless steel components
Specifications
Manufacturer | FLEX PACK |
Model | SERIES 100 |
Condition | Used |
Stock Number | 24243 |
