2017 IMA COMADIS TUBE FILLER 28D1290

2017 IMA COMADIS TUBE FILLER 28D1290

A$78,000 (AUD)

orCall (+61) 403 574 225

Description

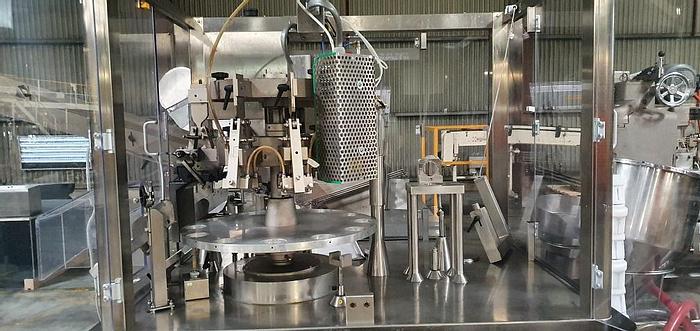

IMA COMADIS Tube Filler C1290

Complete, fast, easy to use: Comadis C1290 is the ultimate proposal coming from many years experience in tube filling industry

Co.Ma.Di.S. C1290 is a major update of the successful "C1090", the benchmark model sold worldwide in many different applications, which has proved to offer enough flexibility to be used in various configurations.

Improved in a number of details, it is now performing tube cleaning by dedicated station, batch data collection via USB port and continuous monitoring - on request - of tube folding and tube crimping areas.


TECHNICAL DATA C1290/C12110

Mechanical speed Up to 90 tubes/min. (C1290)

Filling volume 2-250 mL (on request up to 350 mL)

Tube diameter 10-50 mm (on request polythene and aluminium tubes up to 60 mm)

Tube length 60-250 mm

Working stations 12


Single filling head

65 Sachet Per minute

200g tube capacity

maximum speed: 80Sachet per minute

IMA filler


DESCRIPTION

- Machine base frame, safety guards frame and electrical cabinet made of stainless steel.

- 12-position turntable with indexing drive by Ferguson style intermittor.

- Redesigned turntable adjustment device, with "streamlined" design.

- Direct drive of main shaft without chains, by directly connected gearmotor.

- Centralized lubrication system.

- Safety devices for tube feeding, filling, closing and ejection, as well as for machine overloads.

- Simplified and easy change of size parts, without tools.

- Easy access from all the four machine sides for maintenance and cleaning.

- Electrical cabinet integrated within machine footprint, hinged, and completely insulated from mechanical drive.

- Machine functions control and management by PLC

- Machine speed adjustment from operator panel (HMI) by means of inverter.

- 12" programmable "touch screen" colour panel (HMI), suitable to perform the digital adjustment of following working parameters:

- machine speed

- machine phases

- hopper temperature

- hot air temperature

- air blow pressure for nozzle cleaning

  • - hot air pressure with capability to memorize set values according to tube sizes (by recipes).

Model:C1290

Size/Capacity:Up to 90 tubes per minute

Serial Number:928

Condition:Used

Terms of Sale:  This item is sold ex works Tongala as is.

Specifications

ManufacturerIMA COMADIS TUBE FILLER
Model28D1290
Year2017
ConditionUsed
Stock Number24487
