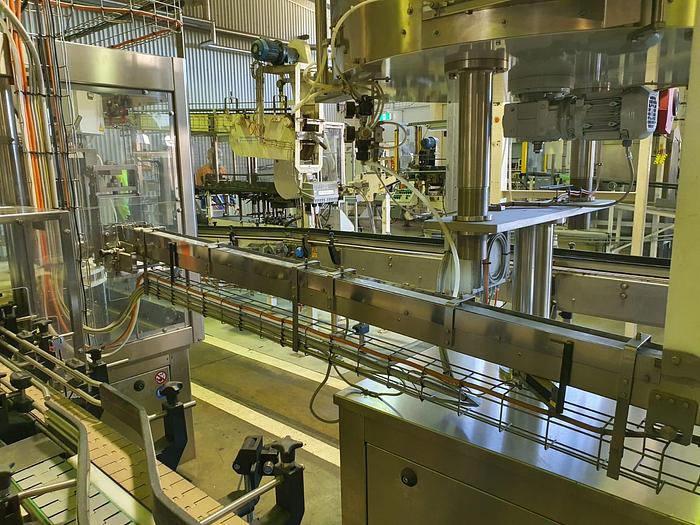

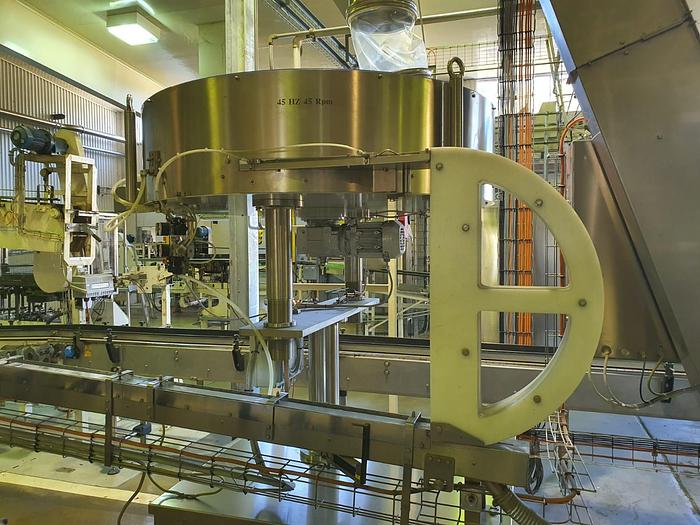

AROL SPA Overlidder with Lid Elevator & Unscrambler ELEVATORE MECCANICO | DART R PP

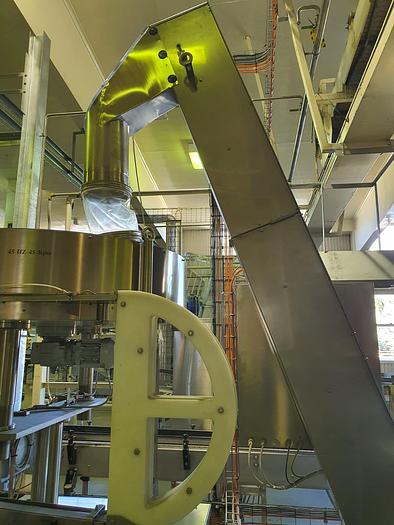

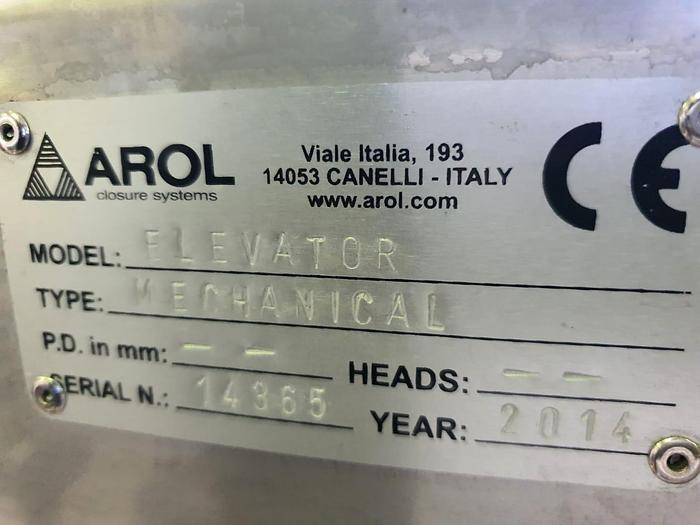

Elevator:

Model: ELEVATORE MECCANICO

S/N: 14365

Speed: 10800 bph

Weight: 500kg

Electrical data

- 415V

- 50Hz

- 24V Aux

- Board: 0.2kW

- Belt motor: 0.4kW

- Linear Vibrator: 0.40kW

- Total: 0.75kW

Infeed height: 1349mm

Discharge height: 2664.8mm

External dimensions: 2346.76mm L x 1000mm W x 3249mm H

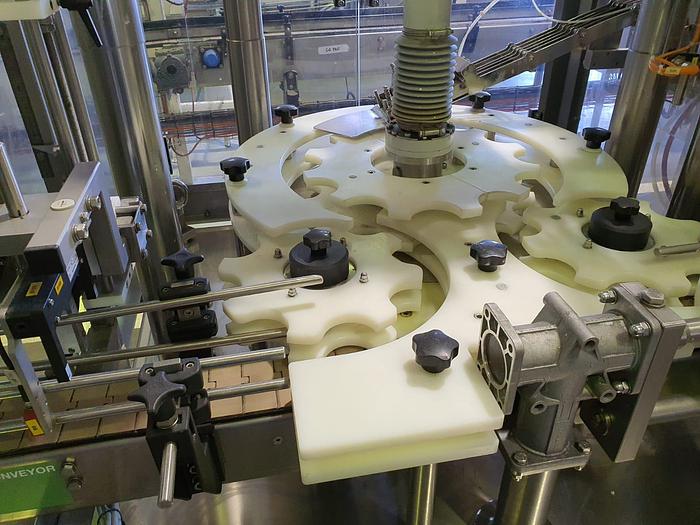

Applicator

Model: DART R PP

S/N: 14364

Pitch: 420mm

Direction of rotation: Counterclockwise

Speed: 10800 bph

Weight: 1630+1370kg

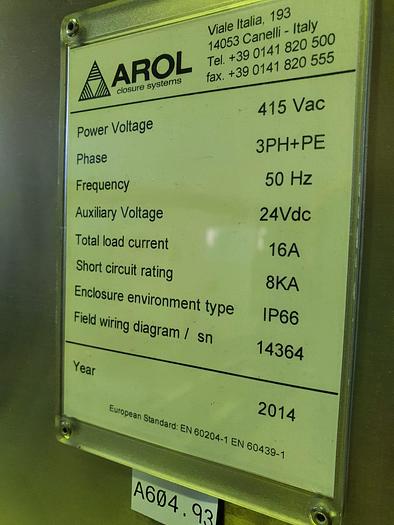

Electrical data

- 415V

- 50Hz

- 24V Aux

- Board: 0.4kW

- Machine rotation main motor: 0.37kW

- Turret lifting rotor: 0.37kW

- Caps sorter motor: 0.37kW

- Bottles conveyor motor: 0.75+0.75kW

- Pump motor: 1.50kW

- Total: 5.65kW

Pneumatic data:

- 500ca Nl/min

- Sterile air : 6bar min - 8bar max

External dimensions: 6048mm L x 2455mm W x 2161mm H

Docs:

- Operation manual

- Maintenance

- Spare parts catalogue

 Model:ELEVATORE MECCANICO | DART R PPStock Number:CAPP21983NSerial Number:14364 | 14365Condition:UsedAge:2014

Terms of Sale:  This item is sold ex works Tongala as is.
