AIRBLEND Helimix 500 Mixers General

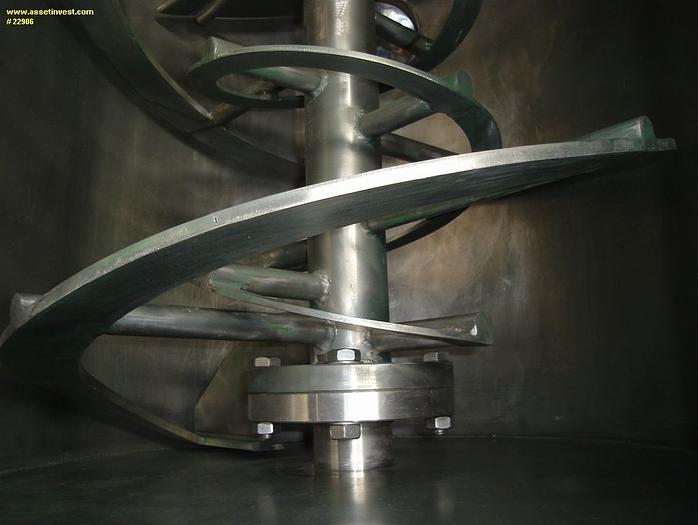

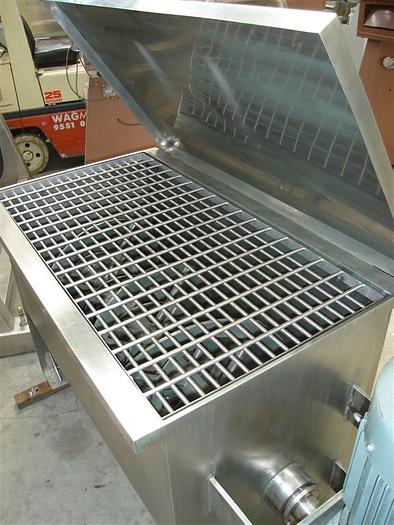

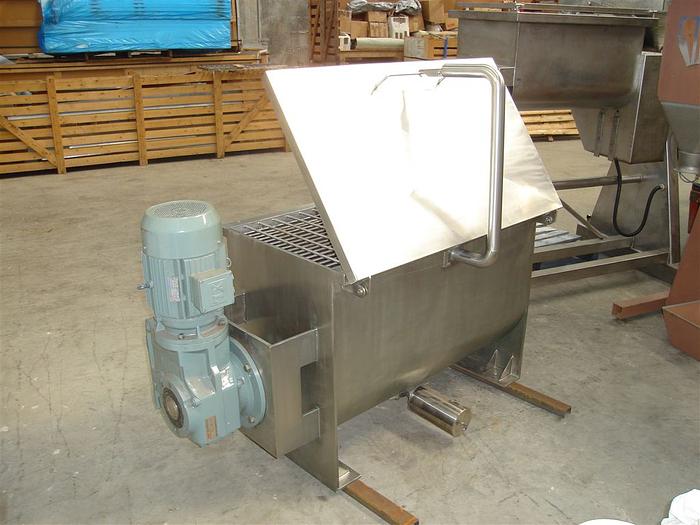

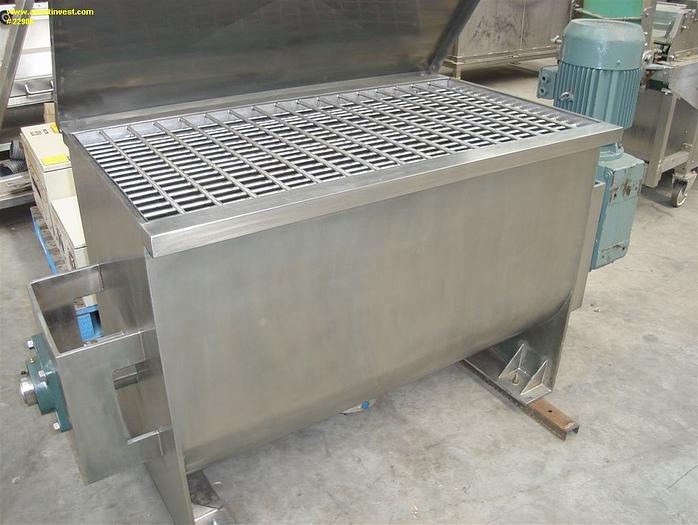

Double Helix Ribbon Mixer This brand new 500L fully stainless steel constructed blender features double ribbon (contra flow) configuration, outrigger bearing/stuffing box seal arrangements at both shaft endings, 150mm dia pneumatically operated butterfly valve discharge, 150mm dia dust extraction port and substantial bar mesh guarding under a hitch up hinged lid arrangement. Working dimensions 1250 W x 620 L x 760 H (mm) A 415V AC, Three Phase 5.5 KW Gear motor Worm wheel & Pinion is direct coupled to the blender shaft.
