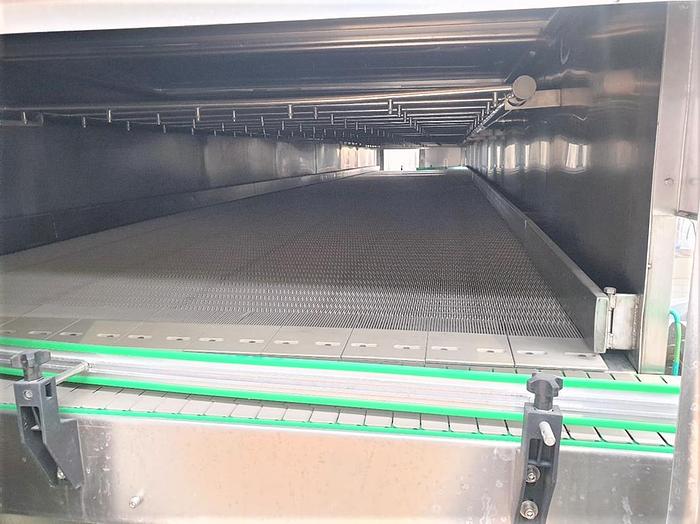

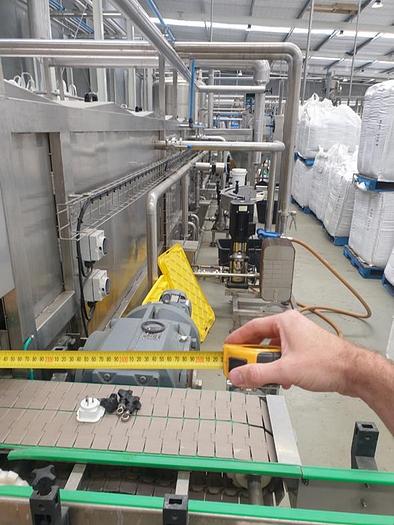

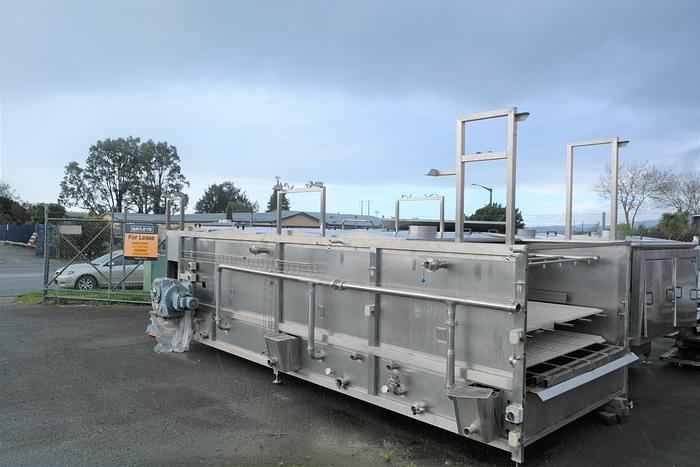

THERMAFLO TUNNEL PASTEURISER

•

TUNNEL PASTEURIZER

Throughput

•

275ml 7,272 BPH – 330ml 6,060 BPH – 500ml 4,000BPH – 1000ml 2,000 BPH

•

Steam pressure 0.3mpa – 0.4 mpa

•

Steam requirement, 600kw 840kgHr from cold start.

•

Water volume in hot well bath– 3,200L

•

Water volume in hot well bath– 680L

•

Water volume in cold crash bath– 2,590L

•

Water volume in cooling tower loop – 320L

•

Inward feed temperature – 20°C

•

Pre heat Zone – 12 min to 72°C

•

Max spray temperature 95°C

•

Retention zone – 19 min 72°C 513PU lethal

•

Cold crash - 13 min exit temperature @ 25 – 30°C

•

Hot well circulation per min – 26,000L

•

Cold crash circulation per min – 18,000L

•

Water draw on start up – 80 L

•

Power 20 amp supply.

INPUTS

Potable water feeding all baths off mains supply with level switches.

Direct injection of steam to bath, (Condensate return can be added)

Air supply to MCCB control cabinets – 90psi (Solenoid)

OUTPUTS

Overflow bath to drain

ADDITIVES

Hydrogen peroxide <200ppm in cold crash bath.

Algae controller cooling tower.

Length – 12m (in 2x 6m sections for transport)

Width – 1.9m (stripped) / 2.5m (fully dressed)

Height – 2m

•

Pump 1, cooling loop

•

Pump 2, Cold crash bath

•

Pump 3 Retention bath

•

Pump 4, Preheat

•

Pump 5, Pre heat

•

Motor 1, infeed

•

Motor 2, belt advance

•

Motor 3, Discharge

Tare 9,100kg / Dynamic load 9,150kg

Footplate 100 diameter

Foot loading (per foot) 600kg
